Abstract

Ria de Aveiro costal lagoon is a socio-ecological system framed between the land and the sea. The lagoon is embedded in a biodiversity rich landscape mosaic comprising beaches, dunes, sandflats, mudflats, seagrasses, and small water channels, and is one of the largest saltmarsh areas in Portugal and in Europe, supporting coastal food webs and providing nursery areas for several species. Despite being a Long-Term Ecological Research (LTER) site and integrating the Natura 2000 network, few systematic studies have been carried on its entomofauna. In this work, field collections were carried in seven locations along Ria de Aveiro saltmarsh areas by sweep-netting the dominating halophyte vegetation in September 2020. From these collections, Teratocoris antennatus (‍Boheman, 1852), a rare marsh bug, is reported for the first time for Portugal.

Keywords: Plant bugs; capsid bugs; Ria de Aveiro; saltmarsh; wetlands; faunistics; Iberian Peninsula.

Resumen

El raro chinche de las marismas Teratocoris antennatus (Boheman, 1852) (Hemiptera, Miridae), nueva especie para Portugal

La laguna costera Ria de Aveiro es un sistema socioecológico enmarcado entre la tierra y el mar. La laguna se encuadra en un mosaico paisajístico biodiverso compuesto por playas, dunas, marismas, pastos marinos, y pequeños canales de agua, y es una de las zonas de marismas más grandes de Portugal y de Europa, sustentando redes tróficas costeras y proporcionando zonas de cría para varias especies. A pesar de ser un sitio de Investigación Ecológica a Largo Plazo (LTER) y de integrar la red Natura 2000, se han realizado pocos estudios sistemáticos sobre su entomofauna. En este trabajo se realizaron muestreos de campo en siete localidades a lo largo de las marismas de la Ría de Aveiro barriendo con redes la vegetación halófita dominante en septiembre de 2020. De estas colecciones se reporta por primera vez para Portugal Teratocoris antennatus (‍Boheman, 1852), un raro insecto de las marismas.

Palabras clave: Chinches de las plantas; míridos; Ria de Aveiro; marismas; humedales; faunística; Península Ibérica.

Recibido/Received: 27/06/2022; Aceptado/Accepted: 16/11/2022; Publicado en línea/Published online: 26/04/2023

Cómo citar este artículo/Citation: Santos, V., Dioli, P., Prado e Castro, C. & Ameixa, O.M.C.C. 2023. The rare saltmarsh bug Teratocoris antennatus (Boheman, 1852) (Hemiptera, Miridae), new species for Portugal. Graellsia, 79(1): e185. https://doi.org/10.3989/graellsia.2023.v79.369

CONTENTS
  1. Abstract
  2. Resumen
  3. Introduction
  4. Material and methods
  5. Results and discussion
  6. Acknowledgments
  7. References

Introduction[Up]

Ria de Aveiro is a coastal lagoon located in the north-west coast of Portugal. The lagoon is connected to the Atlantic Ocean through a single inlet and is approximately 45 km long by 10 km wide, covering an area up to 83 km2 of wetlands during high tide (‍Lillebø et al., 2015). Ria de Aveiro provides an heterogenous network of habitats with a high biological diversity, encompassing one of the largest contiguous saltmarsh areas in Portugal and Europe. Ria de Aveiro is a LTsER - Long Term Socio-economic & Ecosystem Research platform- and part of Natura 2000 Network with two Special Protection Areas (the lagoon area and the adjacent marine area). Despite Ria de Aveiro being considered a living laboratory and target of several research studies, insects have been mostly overlooked.

The family Miridae, commonly known as plant bugs or capsid bugs, has more than 1300 genera and 11300 described species (‍Schuh, 2013; ‍Schuh & Weirauch, 2020), representing the largest and most diverse Heteroptera family (‍Ferreira et al., 2015). Mirids can be found worldwide, except in the Antarctic continent, with diversity hotspots in tropical and Mediterranean ecosystems (‍Wheeler, 2001; ‍Cassis & Schuh, 2012; ‍Schuh, 2013).

In the Iberian Peninsula, the most recent checklist (‍Goula et al., 2018) shows that there are approximately 550 Miridae species, belonging to roughly 190 genera and 7 subfamilies. From these, about one third of the species, corresponding to 35 genera, belongs to the subfamily Mirinae.

The aim of this manuscript is to report the occurrence of Teratocoris antennatus (‍Boheman, 1852) for the first time in Portugal. In the Iberian Peninsula, the species is only known from a single record of a female in 2017 in Almería, Spain, registered in Global Biodiversity Information Facility based on an iNaturalist observation (‍iNaturalist, 2022).

Material and methods[Up]

The specimens were caught in a saltmarsh area of Ria de Aveiro, Portugal. The insect collections were carried out in September 2020, in selected locations along Ria de Aveiro coastal lagoon (Fig. 1). Insect specimens were collected on halophyte vegetation, using sweeping nets (300 sweeps per plant species) in each site, and then transferred with an insect aspirator to small flasks. Specimens were then stored into flasks containing 70% ethanol solution and kept in the Department of Biology of the Aveiro University. Identification was done using Wagner’s (‍1974) keys.

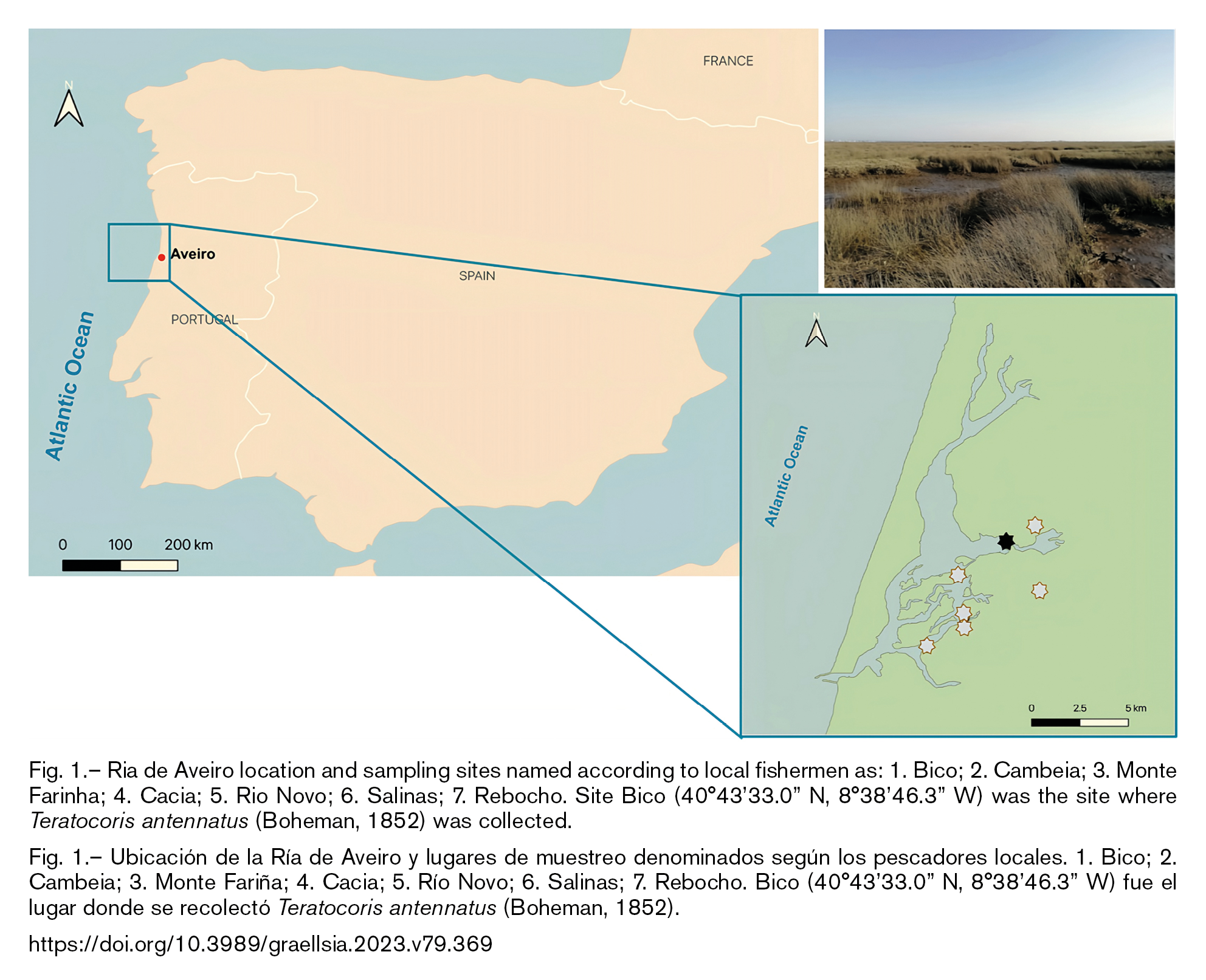

Fig. 1.— Ria de Aveiro location and sampling sites named according to local fishermen as: 1. Bico; 2. Cambeia; 3. Monte Farinha; 4. Cacia; 5. Rio Novo; 6. Salinas; 7. Rebocho. Site Bico (40°43’33.0” N, 8°38’46.3” W) was the site where Teratocoris antennatus (‍Boheman, 1852) was collected.

Fig. 1.– Ubicación de la Ría de Aveiro y lugares de muestreo denominados según los pescadores locales. 1. Bico; 2. Cambeia; 3. Monte Fariña; 4. Cacia; 5. Río Novo; 6. Salinas; 7. Rebocho. Bico (40°43’33.0” N, 8°38’46.3” W) fue el lugar donde se recolectó Teratocoris antennatus (‍Boheman, 1852).

mediumimage/graellsia-79-1-e185-image1a.png

Results and discussion[Up]

Material examined

Portugal, Ria de Aveiro, Bico (40°43’33.0” N, 8°38’46.3” W), 9.IX.2020, 2 ♀♀. On a saltmarsh area, in Juncus maritimus. Sweep-nets. Vasco Santos and Olga Ameixa leg., Paride Dioli det. Photo of one of the collected females is presented in Figure 2. For comparison, photos from individuals (male and female), collected in Pian di Spagna, Lombardia, Italy by Paride Dioli & Martino Salvetti, are shown on Figure 3.

Fig. 2..— Teratocoris antennatus (‍Boheman, 1852) female specimen collected in Ria de Aveiro, Portugal. A. Dorsal view. B. Ventral view. Photos taken by Olga Ameixa.

Fig. 2.– Espécimen hembra de Teratocoris antennatus (‍Boheman, 1852) recolectado en Ría de Aveiro, Portugal. A. Vista dorsal. B. Vista ventral. Fotos tomada por Olga Ameixa.

mediumimage/graellsia-79-1-e185-image2a.png

Fig. 3.— Teratocoris antennatus (‍Boheman, 1852). A. Male. B. Female. Samples from Pian di Spagna, Lombardia, Italy, Paride Dioli & Martino Salvetti coll., preserved in P. Dioli collection. Photo taken by Paride Dioli.

Fig. 3.– Teratocoris antennatus (A - macho; B - hembra) (‍Boheman, 1852). Ejemplares de Pian di Spagna, Lombardia, Italia, colección Paride Dioli & Martino Salvetti, conservados en la colección P. Dioli. Foto tomada por Paride Dioli.

mediumimage/graellsia-79-1-e185-image3a.png

Comments

Teratocoris antennatus belongs to the Hemiptera order, in the Miridae family and tribe Stenodemini. Teratocoris includes eleven described species, five of which occur in the Palaearctic region (T. antennatus ‍Boheman, 1852, T. coriaceus Vinokurov, 1995, T. depressus Kerzhner, 1979, T. tagoi ‍Yasunaga & Schwartz, 2012 and T. ussuriensis Kerzhner, 1988), another four in the Holarctic region (T. caricis Kirkaldy, 1909, T. paludum J. Sahlberg, 1870, T. saundersi Doublas & Scott, 1869 and T. viridis Doublas & Scott, 1867), and the remaining two species in the Nearctic region (T. borealis ‍Kelton, 1966 and T. discolour Uhler, 1887) (‍Henry & Froeschner, 1998; ‍Kerzhner & Josifov, 1999; ‍Yasunaga et al., 2012; ‍Aukema et al., 2013).

Teratocoris antennatus is a rare marsh zoophytophagous insect, which can be found on Cyperaceae such as Carex sp. and Scirpus sp., Poaceae such as Glyceria sp. and Phragmites sp., and Juncaceae such as Juncus sp. (‍Kelton, 1966). This species is more predominant in central and northern Europe, but it was recently found in Italy (‍Dioli & Salvetti, 2016) and is now reported for the first time in Portugal, which together with the Almería report in GBIF (via iNaturalist), represent the first records for the Iberian Peninsula.

This species has previously received several names, due to variability in its coloration, resulting in several synonyms: Teratocoris bohemani Stichel, 1930, Teratocoris dahli Wagner, 1952, Teratocoris dorsalis Fieber, 1864, Teratocoris fieberi Stichel, 1930, Teratocoris hueberi Stichel, 1930, Teratocoris reuteri Stichel, 1930, and Teratocoris notatus Baerensprung, 1859 (‍Kerzhner & Josifov, 1999, ‍Schwartz, 2008; ‍Dioli & Salvetti, 2016).

Morphological differences can be found among Palaearctic individuals of T. antennatus, mainly in the antennae. Its first antennal segment may present a red or orange-brown coloration, covered with scattered, very short, barely visible bristles with a size of less than a third of the segment diameter. Otherwise, antennae are brownish, with the second article 1.8 times longer than the first article and slightly shorter than the third and fourth segments united. In the head, the vertex is wider than the eye, 1.5 times in the male, and 1.5-1.7 times in the female. In the proximal part, the pronotum has a shallow but distinct transverse groove, and its margin has an almost angular indentation. The distal part is slightly wider than the head, including the eyes. The general colouration is pale green, especially in the females, or ochre-yellow in the males, often with reddish or brown spots in the hemelytra. The female (5.2-5.5 mm) is considerably longer than the male (3.2-3.5 mm). Both macropterous and brachypterous specimens can be found (‍Wagner, 1974; ‍Dioli & Salvetti, 2016).

Distribution

Its distribution includes all Euopean territory, North Africa (Morocco and Argelia), and central and northern Asia (Turkey, Iran, Russia up to Siberia, Turkmenistan, and Tajikistan) (‍Kerzhner & Josifov, 1999).

Final remarks

Teratocoris antennatus is well adapted to the harsh saltmarsh conditions, under the influence of tides, with inundation periods of brackish to saline water. According to Wachmann et al. (‍2004) this species can live in dense reed beds and sedge beds near fresh and brackish waters and in marshy areas with a mixture of plants belonging to Poaceae, Cyperaceae and Juncaceae, but it can also be found on Phragmites australis and Phalaris arundinacea (‍Dioli & Salvetti, 2016).

This species mostly feeds on the vegetative part and reproductive organs from its host plants, but since it is zoophytophagous, there are also records of this species feeding on aphids, young cicadas, small caterpillars of butterflies and other insects (‍Dioli & Salvetti, 2016). Regarding its behaviour, it is not a gregarious species, only occasionally it is possible to find both juveniles and adults together (‍Dioli & Salvetti, 2016).

Lagoons are vulnerable wetlands, and climate change projections for this century highlight the increased risk of floods, already responsible for saline intrusion in adjacent areas. This can induce important changes in plant cover composition and all dependent life forms. For this reason, rare species such as T. antennatus may be at risk in these threatened environments. Ria the Aveiro lacks important entomological research, so sampling often results in new records, for instance, Lourenço et al. (‍2020) reported the first record of Fucellia maritima (‍Haliday, 1838) for Portugal, and Prado e Castro et al. (‍2022) presented several new records from Ephydridae family. For this reason, it is important to conduct additional surveys.

Insects play important ecological roles in the ecosystems due to their diversity, abundance, and wide range of feeding habitats, and even have potential biotechnological uses (‍Duarte et al. 2021). Since they are vulnerable to habitat disturbances they can be used as indicators of ecological changes (‍Ameixa et al., 2018), which can contribute to monitor ongoing environmental changes.

Acknowledgments[Up]

We acknowledge financial support to CESAM by FCT/MCTES (UIDP/50017/2020+UIDB/50017/2020+LA/P/0094/2020), through national funds and to the project SUShI (CENTRO-01-0145-FEDER-030818), co-funded by Centro 2020 program, Portugal 2020, through the European Regional Development Fund, through the National Science Foundation (FCT/MCTES). We also acknowledge PORBIOTA—Portuguese E-Infrastructure for Information and Research on Biodiversity (POCI-01-0145-FEDER-022127), financed by FCT through PIDAC national funds and co-funded by the FEDER. OMCCA is funded by national funds through the Portuguese Foundation for Science and Technology (FCT), under the project 2022.08112.CEECIND. The authors wish to thank Felipe Lourenço and Aldiro Pereira for helping with the field sampling and Lísia Lopes for her technical assistance in photographing the collected specimens.

References[Up]

[1]

Ameixa, O.M.C.C., Soares, A.O., Soares, A. & Lillebø, A.I. 2018. Ecosystem Services Provided by the Little Things That Run the World. In: B. Şen, & O. Grillo (Eds.), Selected Studies in Biodiversity. IntechOpen. https://doi.org/10.5772/intechopen.74847

[2]

Aukema, B., Rieger, C. & Rabitsch, W. (Eds). 2013. Catalogue of the Heteroptera of the Palaearctic Region. Volumen 6. Supplement. The Netherlands Entomological Society. Amsterdam. xxiii + 629 pp.

[3]

Boheman, C.H. 1852. Nya svenska Hemiptera. Öfversigt af Kongliga Vetenskapsakademiens Förhandlingar, 9: 65-‍80.

[4]

Cassis G. & Schuh, R.T. 2012. Systematics, biodiversity, biogeography, and host associations of the Miridae (Insecta: Hemiptera: Heteroptera, Cimicomorpha). Annual Review of Entomology, 57: 377–404. https://doi.org/10.1146/annurev-ento-121510-133533

[5]

Dioli P. & Salvetti, M. 2016. Nuova segnalazione in Italia (Lombardia) di Teratocoris antennatus (Boheman,1852) raro insetto palustre (Hexapoda, Heteroptera, Miridae). Il Naturalista Valtellinese. Atti del Museo Civico di Storia Naturale di Morbegno, 27: 87-‍90

[6]

Duarte, P.M., Maciel, E., Pinho, M., Domingues, M.R., Calado, R., Lillebø, A.I. & Ameixa, O.M.C.C. 2021. Omega-3 on the fly: long-legged fly Machaerium maritimae as a potential source of eicosapentaenoic acid for aquafeeds. Journal of Insects as Food and Feed, 7(7): 1089-1100. https://doi.org/10.3920/JIFF2020.0112

[7]

Ferreira, P.S.F., Henry, T.J. & Coelho, L.A. 2015. Plant Bugs (Miridae). In: Panizzi A. & Grazia J. (eds): True Bugs (Heteroptera) of the Neotropics. Entomology in Focus, vol 2. Springer, Dordrecht. https://doi.org/10.1007/978-94-017-9861-7_10

[8]

Goula, M., Roca-Cusachs, M., Prieto Piloña, F. & Pérez Valcárcel, J. 2018. Checklist de Fauna Ibérica. Familia Miridae (Insecta: Heteroptera) en la Península Ibérica, islas Baleares e islas Canarias (edición 2018). In: Ramos, M.A. & Sánchez Ruiz, M. (eds.), Documentos Fauna Ibérica, 8. Museo Nacional de Ciencias Naturales, CSIC, Madrid, [2] + 35 pp.

[9]

Henry, T.J. & Foeschner, R.C. 1988. Catalogue of the Heteroptera, or true bugs, of Canada and the continental United States. E.J. Brill. Leiden. xviii + 958 pp.

[10]

iNaturalist contributors, iNaturalist (2022). iNaturalist Research-grade Observations. iNaturalist.org. Occurrence dataset https://doi.org/10.15468/ab3s5x accessed via GBIF.org on 2022-06-23. https://www.gbif.org/occurrence/2980871190

[11]

Kelton, L.A. 1966. Review of the species of Teratocoris Fieber, with description of a new species from the Nearctic Region (Hemiptera: Miridae). Canadian Entomologist, 98: 1265–1271. https://doi.org/10.4039/Ent981265-12

[12]

Kerzhner, I.M. & Josifov, M. 1999. Miridae. In: Aukema, B. & Chr. Rieger (Eds). Catalogue of Heteroptera of the Palaearctic Region. Vol. 3. Cimicomorpha II. The Netherlands Entomological Society. Wageningen. 577 pp.

[13]

Lillebø, A.I., Ameixa, O.M.C.C.A., Sousa, L., Sousa, A.I., Dolbeth, M. & Alves, F. 2015. The physio-geographical background and the ecology of Ria de Aveiro (chapter 3). In: A.I. Lillebø, P. Stålnacke & G.D. Gooch (eds.) Coastal Lagoons in Europe: Integrated Water Resource Strategies. IWA Publishing, London: 21-29. https://doi.org/10.2166/9781780406299

[14]

Lourenço, F., Prado e Castro, C. & Ameixa, O.M.C.C. 2020. First record of Fucellia maritima (Haliday, 1838) (Diptera, Anthomyiidae) populations in Portugal. Norwegian Journal of Entomology, 67: 246-‍248.

[15]

Prado e Castro, C., Santos, V. & Ameixa, O.M.C.C. 2022. Shore fly (Diptera: Ephydridae) communities from Ria de Aveiro, with new records for Portugal. Fragmenta Entomologica, 54(1): 95–100. https://doi.org/10.13133/2284-4880/715

[16]

Schuh, R.T. 2013. On-line systematic catalog of plant bugs (Insecta: Heteroptera: Miridae). Available from https://research.amnh.org/pbi/catalog/ [accessed 23 Jun. 2022].

[17]

Schuh, R.T. & Weirauch, C. 2020. True bugs of the world (Hemiptera: Heteroptera). Classification and natural history. 2nd edition. Siri Scientific Press. Monograph Series Volume, 8. 767 pp., 32 pl.

[18]

Schwartz, M.D. 2008. Revision of the Stenodemini with a Review of the Included Genera (Hemiptera: Heteroptera: Miridae: Mirinae). Proceedings of the Entomological Society of Washington, 110(4): 1111-1201. https://doi.org/10.4289/0013-8797-110.4.1111

[19]

Southwood, T.R.E. & Leston, D. 1959. Land and Water Bugs of the British Isles. Frederick Warne and Co., London. 436 pp.

[20]

Wachmann E., Melber A. & Deckert, J. 2004. Wanzen. Band 2. Cimicomorpha. Microphysidae, Miridae. Die Tierwelt Deutschlands 75, Goecke & Evers, Keltern. 288 pp.

[21]

Wagner, E. 1974. Die Miridae Hahn, 1831, des Mitelmeerraumes und der Makaronesischen Inseln (Hemiptera, Heteroptera). Teil. 1. Entomologische Abhandlungen, 37 Suppl.: iii + 484 pp.

[22]

Wheeler, A.G. 2001. Biology of the plant bugs (Hemiptera: Miridae). Pests, predators, opportunists. Cornell University Press, Ithaca, New York. 528 pp.

[23]

Yasunaga T., Schwartz M.D. & Aukema B. 2012. Availability and type depository of twelve Japanese plant bug species (Hemiptera: Heteroptera: Miridae). Zootaxa 3478: 111–112. ttps://doi.org/10.11646/zootaxa.3478.1.13
