Abstract

Mutillid wasps (Mutillidae) are widespread ectoparasitoid Hymenoptera, represented in Europe by at least 150 species and are characterized by extreme sexual dimorphism. One of the five Iberian species within the genus Dasylabris, D. egregia (‍Klug, 1835), was until recently known only from Spain. This short note focuses on the first three records of the species for Portugal, all from coastal Alentejo, including a new locality. Published data on its occurrence in Spain are also briefly summarized.

Keywords: Dasylabris maura var. calonota; new record; range extension; coastal sand dunes.

Resumen

Notas sobre la presencia del endemismo ibérico Dasylabris egregia (Klug, 1835) (Hymenoptera, Mutillidae, Dasylabrinae) en Portugal

Los mutílidos (Mutillidae), son una familia de himenópteros ectoparasitoides de amplia distribución, representados por al menos 150 especies en Europa y caracterizados por presentar dimorfismo sexual extremo. Una de las cinco especies ibéricas del género Dasylabris, D. egregia (‍Klug, 1835), era hasta hace poco únicamente conocida de España. Esta breve nota se centra en los tres primeros registros de la especie para Portugal, todos de la costa del Alentejo, incluyendo una nueva localidad. Además, se resumen brevemente los datos publicados sobre su presencia en España.

Palabras clave: Dasylabris maura var. calonota; nuevo registro; extensión de distribución; arenales costeros.

Recibido/Received: 05/01/2021; Aceptado/Accepted: 20/04/2022; Publicado en línea/Published online: 07/09/2022

Cómo citar este artículo/Citation: Matias, R. 2022. Notes on the occurrence of the Iberian endemic Dasylabris egregia (Klug, 1835) (Hymenoptera, Mutillidae, Dasylabrinae) in Portugal. Graellsia, 78(2): e172. https://doi.org/10.3989/graellsia.2022.v78.338

CONTENTS
  1. Abstract
  2. Resumen
  3. Acknowledgements
  4. References

Mutillid wasps (Mutillidae; also known as velvet ants) are ectoparasitoid Hymenoptera with more than 4600 species known worldwide, of which at least 150 occur in Europe (e.g. ‍Lelej, 2002; ‍Pagliano et al., 2020); within this family, species are characterized by extreme sexual dimorphism (generally males are winged and females wingless), with both sexes frequently exhibiting very different chromatic patterns; in consequence, unless both sexes are found in copula, sex-associations are difficult to establish and each sex is frequently described independently as a different species.

The Mutillid wasp fauna of Spain has been studied in some detail during the 20th century; elaborated over an unfinished manuscript by the entomologist Ricardo García Mercet, the work by José Giner Marí (‍1944) was an attempt to summarize the knowledge to that date, and from the 1950’s Francisco J. Suárez published what are still the most relevant works regarding Iberian Mutillid wasps to the present day (e.g. ‍Suárez, 1952, ‍1954a, ‍b, ‍1959, ‍1988, among others). By contrast, the respective fauna of Portugal has received little attention, and despite occasional mentions to Mutillid wasps in general faunistic works (e.g. ‍Diniz, 1959, ‍1989, and more recently ‍Baldock et al., 2020), the present country-level knowledge about this family is extremely incomplete, with gaps that will take considerable effort to mitigate.

The genus Dasylabris Radoszkowski, 1885 (Dasylabrinae) is currently considered to be composed of five species within the Iberian Peninsula, four of those in the subgenus Dasylabris s.s.: D. atrata (Linnaeus, 1767), D. egregia (‍Klug, 1835), D. iberica Giner, 1942 and D. maura (Linnaeus, 1758), and one in the subgenus Inbaltilla Lelej, 1976: D. lugubris (‍Klug, 1835); e.g. Giner Marí (‍1944), Lelej (‍2002).

Dasylabris egregia was originally described from the male sex, collected in Puerto Real (Andalusia, Spain; ‍Klug, 1835; ‍Lelej, 2002); the female sex was described separately by André (‍1903), as Mutilla maura var. calonota, based on a specimen from Madrid; the correct male-female sex association was first suggested by García Mercet (‍1903), then by Junco y Reyes (‍1941) and finally formalized by Giner Marí (‍1944) by inference (i.e. no pair in copula was obtained), synonymizing André’s taxon. Records of this species are relatively scarce and known from the southern half of Spain, from Madrid to Andalusia and particularly from the south-eastern provinces (Fig. 1; Appendix 1); the species was thought to be endemic of Spain until two records were recently reported by Baldock et al. (2020). Partially in consequence of its scarcity nothing is known about its potential host species or other aspects of its ecology.

In July 2019, while making a direct effort to collect Mutillid wasps, the author found a female D. egregia running over the dunes north of Vila Nova de Milfontes (Odemira, Beja, Portugal).

Material: 1♀, Vila Nova de Milfontes (Odemira, Beja, Portugal), 37º45’18.04’’N, 8º47’56.70’’W, alt. 51 m a.s.l., 18.vii.2019, 11:10 GMT (R. Matias, det., leg. & coll.); Figs. 2-‍3.

The specimen (length: 14.2 mm) lacks the last antennomere of the right antenna and, attached to the right femur 2, there is a parasite (undetermined Acari). Morphologically, it is identical in every respect to typical Spanish specimens.

The two other records recently published from coastal Portugal (‍Baldock et al., 2020), both localities north of the record here described, are: 1♀, Carvalhal (Grândola, Setúbal), 22.vii.2016, det. Romano, leg. J. Halada, coll. Romano; 1♀, Santo André (Santiago do Cacém, Setúbal), 5.viii.2018, det. Baldock, leg. M. & E. Howe.

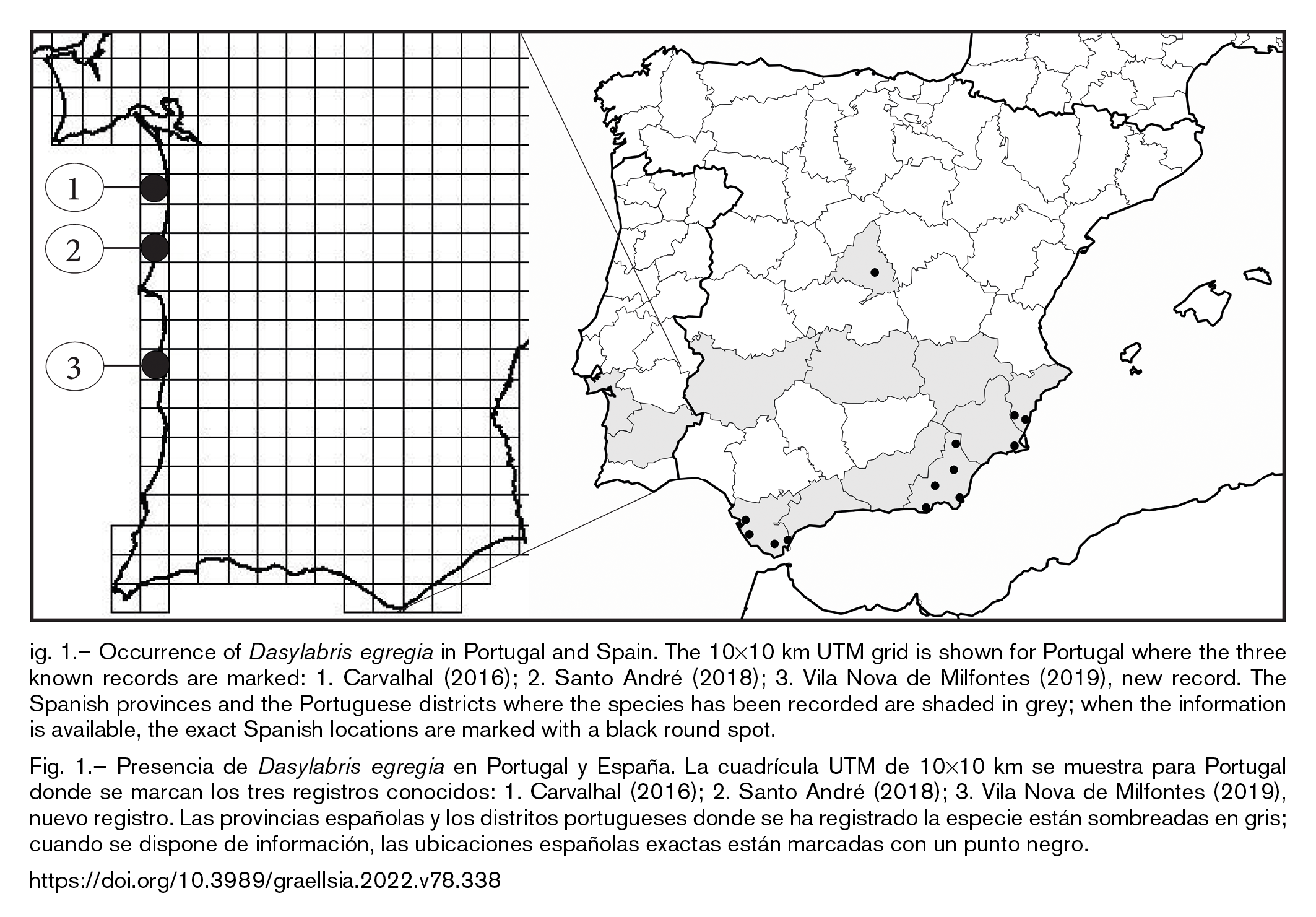

Fig. 1.— Occurrence of Dasylabris egregia in Portugal and Spain. The 10×10 km UTM grid is shown for Portugal where the three known records are marked: 1. Carvalhal (2016); 2. Santo André (2018); 3. Vila Nova de Milfontes (2019), new record. The Spanish provinces and the Portuguese districts where the species has been recorded are shaded in grey; when the information is available, the exact Spanish locations are marked with a black round spot.

Fig. 1.— Presencia de Dasylabris egregia en Portugal y España. La cuadrícula UTM de 10×10 km se muestra para Portugal donde se marcan los tres registros conocidos: 1. Carvalhal (2016); 2. Santo André (2018); 3. Vila Nova de Milfontes (2019), nuevo registro. Las provincias españolas y los distritos portugueses donde se ha registrado la especie están sombreadas en gris; cuando se dispone de información, las ubicaciones españolas exactas están marcadas con un punto negro.

mediumimage/graellsia-78-2-e172-image1.png

Dasylabris egregia is therefore an Iberian endemic, but evidently rare in Portugal, where it currently is known only from three coastal locations (Fig. 1), all in Alentejo, associated with extensive sand dunes. In Spain it occurs not only in this type of habitat but also in well preserved cork oak forests and other dry and non-coastal areas (e.g. Los Alcornocales Natural Park, Cádiz; Appendix 1), including montane habitat and Mediterranean scrubland (e.g. in the provinces of Granada and Malaga; Appendix 1); this fact extends considerably the potential area of occurrence in Portugal, which may be less fragmented than the three currently known records could suggest. Sand dunes are continuous in a strip along the south-western coast from Tróia to Sines (where the 2016 and 2018 specimens were found), with further large expanses of coastal sand dunes South of Sines at Almograve, Vila Nova de Milfontes (the locality of the present record), around Aljezur (Amoreira) and at Carrapateira; on the other hand, formerly favourable habitat along the coast of Algarve (southernmost Portuguese province) is now probably too degraded and anthropized to hold populations of the species, but the Ria Formosa Natural Park (in particular at the barrier islands) might be the best area to search for the species presently. Habitat changes and habitat loss are two of the most important threats to thepresence of D. egregia in the region; large areas of biodiverse habitats are currently under intense human pressure, even within nationally protected areas (e.g. “Parque Natural do Sudoeste Alentejano e Costa Vicentina”), where they are being converted to intensive agriculture and to build tourism-related infrastructures, such as golf courses and large touristic resorts at the expenses of the destruction of natural habitats.

Fig. 2.— Dasylabris egregia, female, Vila Nova de Milfontes, 18.vii.2019. Dorsal habitus.

Fig. 2.— Dasylabris egregia, hembra, Vila Nova de Milfontes, 18.vii.2019. Habitus dorsal.

mediumimage/graellsia-78-2-e172-image2.png

These records significantly increase the previously known distribution of the species; they indicate most probably it has remained undetected in those areas, rather than a recent expansion. This fact is relevant, as it is an indication of the poor sampling effort made in Portugal regarding Mutillid wasps (with obvious consequences to the knowledge of this group), given that D. egregia is a very large, striking and easily identifiable species (particularly the female), despite being a scarce species. It further suggests an inadequately known biodiversity in large areas of the Portuguese territory, which is a limitation to measure potential biodiversity loss.

Fig. 3.— Dasylabris egregia, pygidial area (gastral tergum 6) of the same specimen.

Fig. 3.— Dasylabris egregia, área pigidial (tergum gastral 6) del mismo espécimen.

mediumimage/graellsia-78-2-e172-image3.png

In conclusion, further continuous effort is necessary to conveniently describe not only the distribution and real abundance of this species but also of the remainder Portuguese Mutillid wasps fauna.

Acknowledgements[Up]

The author would like to thank both reviewers, J. M. Grosso-Silva and D. Parejo-Pulido, for their useful comments.

References[Up]

[1]

André, E., 1899-‍1903. Spécies de Hyménoptères d’Europe & d’Algérie. Tome Huitième. Vvo Dubosclard, Paris. [1899: 1-64; 1900: 65-144; 1901: 145-304; 1902: 305-384; 1903: 385-478 + plates 1-15]. https://doi.org/10.5962/bhl.title.10281

[2]

Baldock, D., Castro, L., Cross, I., Schmid-Egger, C., Smit, J., & Wood, T. J., 2020. The Vespiform Wasps of Portugal (Hymenoptera: Scolioidea, Tiphioidea, Pompiloidea & Vespoidea). Monografías S.E.A., 14: 1-‍74.

[3]

Diniz, M. A., 1959. Estado actual do conhecimento dos Himenópteros de Portugal. Memórias e Estudos do Museu Zoológico da Universidade de Coimbra, 259: 1-‍42.

[4]

Diniz, M. A. 1989. Contribuição para o conhecimento das vespas da fauna portuguesa. Ciência Biológica - Ecology and Systematics, 9(1/2): 27-‍32.

[5]

García Mercet, R., 1903. Noticia acerca del “Dasylabris egregia”. Boletín de la Sociedad Española de Historia Natural, 3: 321-‍324.

[6]

Giner Marí, J., 1944. Himenópteros de España: Fams. Apterogynidae y Mutillidae. Instituto Español de Entomología (Madrid). 124 pp.

[7]

Junco y Reyes, J. J. del, 1941. Nota himenopterológica. Boletín de la Real Sociedad Española de Historia Natural, 39: 185-‍186.

[8]

Klug, J. C. F., 1835. Description de Mutilles. In: Waltl, J. Reise durch Tirol, Oberitalien und Piemont nach dem sudlichen Spanien. Passau, 2: 91-‍95.

[9]

Lelej, A. S., 2002. Catalogue of the Mutillidae (Hymenoptera) of the Palaearctic region. Dalnauka, Vladivostok, 171 pp.

[10]

Pagliano, G., Brothers, D. J., Cambra, R., Lelej, A. S., Lo Cascio, P., Palmerini, M. M., Scaramozzino, P. L., Williams, K. A., Romano, M., 2020. Checklist of names in Mutillidae (Hymenoptera), with illustrations of selected species. Bolletino del Museo Regionale di Scienze Naturali, 36 (1-‍2) (2018): 5-‍427.

[11]

Rosenhauer, W. G., 1856. Die Thiere Andalusiens nach dem Resultate einer Reise zusammengestellt, etc. Erlangen. 429 pp. https://doi.org/10.5962/bhl.title.66016

[12]

Suárez, F. J., 1952. Mutílidos de la Provincia de Almería. Boletín de la Real Sociedad Española de Historia Natural, 50 (1): 73-‍90.

[13]

Suárez, F. J., 1954a. Aportaciones al conocimiento de la fauna lusitana. I. Una nueva especie de Smicromyrme Thoms. (Hym. Mutillidae). Memórias e Estudos do Museu Zoológico da Universidade de Coimbra, 222: 1-‍6.

[14]

Suárez, F. J., 1954b. Un nuevo mutílido de España perteneciente al género Myrmilla Wesm. (Hym., Mutillidae). Archivos del Instituto de Aclimatación, Almería, 2: 157-‍160.

[15]

Suárez, F. J., 1959. Mutílidos españoles nuevos o interesantes de la colección del Instituto Español de Entomología. Eos, 35: 97-‍112. Available from http://hdl.handle.net/10261/155776 [accessed 6 May 2022].

[16]

Suárez, F. J., 1988. Mirmósidos de la Península Ibérica (Hymenoptera, Myrmosidae). Graellsia, 44: 81-‍158.
