ANNOTATED CHECKLIST OF EUPELMUS (MACRONEURA) FROM THE IBERIAN PENINSULA, BALEARIC AND MACARONESIAN ISLANDS

Eupelmus (Macroneura) aseculatus (Kalina, 1981) (Fig. 2A)

Fig. 2.—Habitus of selected species of Eupelmus (Macroneura): (A) Eupelmus (Macroneura) aseculatus Kalina, female. (B) Eupelmus (Macroneura) muellneri Ruschka, female (C) Eupelmus (Macroneura) vesicularis (Retzius), male. (D) Eupelmus (Macroneura) vesicularis (Retzius), female. (E) Eupelmus (Macroneura) seculatus (Ferrière), female. (F) Eupelmus (Macroneura) messene Walker, female. Scale bar 0.5 mm. Fig. 2.—Habitus de especies seleccionadas de Eupelmus (Macroneura): (A) Eupelmus (Macroneura) aseculatus Kalina, hembra. (B) Eupelmus (Macroneura) muellneri Ruschka, hembra. (C) Eupelmus (Macroneura) vesicularis (Retzius), macho. (D) Eupelmus (Macroneura) vesicularis (Retzius), hembra. (E) Eupelmus (Macroneura)seculatus (Ferrière), hembra. (F) Eupelmus (Macroneura) messene Walker, hembra. Barra de escala 0.5 mm.

The male of this species has not been identified and may not exist (Fusu, 2017). Previous rearing records in the region are from galls of the Cynipidae (Hymenoptera: Cynipoidea) Aylax papaveris (Perris) on Papaver in Madrid (1987, JLN-A) (Askew & Nieves-Aldrey, 2000 as ‘E. sp. indet. B’; Askew et al., 2006), Andricus quercusradicis (Fabricius) on Quercus sp. in Madrid (1983, JLN-A) and two species of Callirhytis, C. glandium (Giraud) and C. rufescens (Mayr), on Quercus suber in Salamanca (1982, JLN-A) and Toledo (1989, JLN-A) (Askew & Nieves-Aldrey, 2000, 2017; Fusu, 2017). Fusu (2017) gives Granada (1973, Z. Bouček) as an additional locality, and further specimens have been found in the Malaise trap samples from La Parata (Almería, Mojácar) (Table 1).

Eupelmus (Macroneura) falcatus (Nikol’skaya, 1952)

Eupelmus (M.) falcatus is predominantly, perhaps exclusively, a parasitoid in stems of herbaceous plants and particularly grasses in which it attacks species of Tetramesa (Eurytomidae) or their chalcidoid parasitoids. It appears to be rather uncommon in Iberia with records limited to Madrid and Lleida, and only one addition to our previously quoted records (Askew & Nieves-Aldrey, 2000, 2017): 1♀ reared from a stem of Stipa parviflora (Lleida, 2008, A. Ribes) (Fusu, 2017). It was not found in the Malaise trap samples from La Parata (Table 1).

Eupelmus (Macroneura) maculatus (Ferrière, 1954)

There do not appear to be any host records for this rather rare species which has a Mediterranean distribution in Europe. First recorded in the Iberian Peninsula in Spain from Barcelona in Askew & Nieves-Aldrey (2000) (1♀ 1974, Z. Bouček), an additional 12♀♀ from presumably the same collection are cited by Fusu (2017: 83) as well as 2♀♀ collected vi.1971 at Calella de Costa, Barcelona by Bouček. In addition, Fusu reports specimens collected by Bouček in 1973 in Alicante (2♀♀), Granada (1♀) and Malaga (1♀). The La Parata (Almería) Malaise trap samples (Table 1) included only a single female which was previously reported by Askew & Nieves-Aldrey (2017).

Eupelmus (Macroneura) muellneri (Ruschka, 1921) (Fig. 2B)

Eupelmus (M.) muellneri has a Mediterranean distribution and is common in Spain and present also in Portugal and the Balearic (Majorca, Formentera, Ibiza) and Canary (Tenerife) Islands (Table 2). It is another polyphagous species, although nearly all of its known hosts are gall-formers. It has been previously recorded in the region as a parasitoid in galls of the cynipids Isocolus lichtensteini (Mayr) on Centaurea (Lleida, Majorca) and Plagiotrochus quercusilicis (Fabricius) sex. gen. on Quercus (Madrid), the tephritids Myopites sp (p). on Inula (Girona, Majorca) and Bactrocera oleae (Rossi) (Diptera, Tephritidae) on Olea (Barcelona), the cecidomyiids Stefaniella atriplicis (Kieffer) and Stefaniola salsolae (Tavares) (Diptera, Cecidomyiidae) on Atriplex (Zaragoza, Huesca and Lleida in Spain, Albufeira in Portugal), Lasioptera eryngii (Vallot) on Eryngium (Lleida, Albufeira (Portugal) and unidentified cecidomyiid galls on Artemisia (Murcia). Eupelmus (M.) muellneri was, in addition, reared in Lleida by A. Ribes from two species of cecidogenic Lepidoptera: Coleophora cf serinipennella Christoph (Coleophoridae) on Atriplex and, at two sites, Parapodia sinaica (Frauenfeld) (Gelechiidae) on Tamarix (Askew & Nieves-Aldrey, 2000, 2017; Fusu, 2017). A newly reported host is the cynipid Diplolepis nervosa (Curtis) on Rosa, 2♀♀emerging from galls collected in Lleida (Torres de Segre) in 2012, RRA; the single Spanish specimen of E. (M.) muellneri noted in Askew et al., 2006:34 from unidentified smooth pea galls of Diplolepis sp. probably had the same host species. In addition to these gall-forming hosts, E. (M.) muellneri is reported to have been associated with unnamed Scolytidae (Coleoptera) on Euphorbia in Tenerife (Fusu, 2017:84).

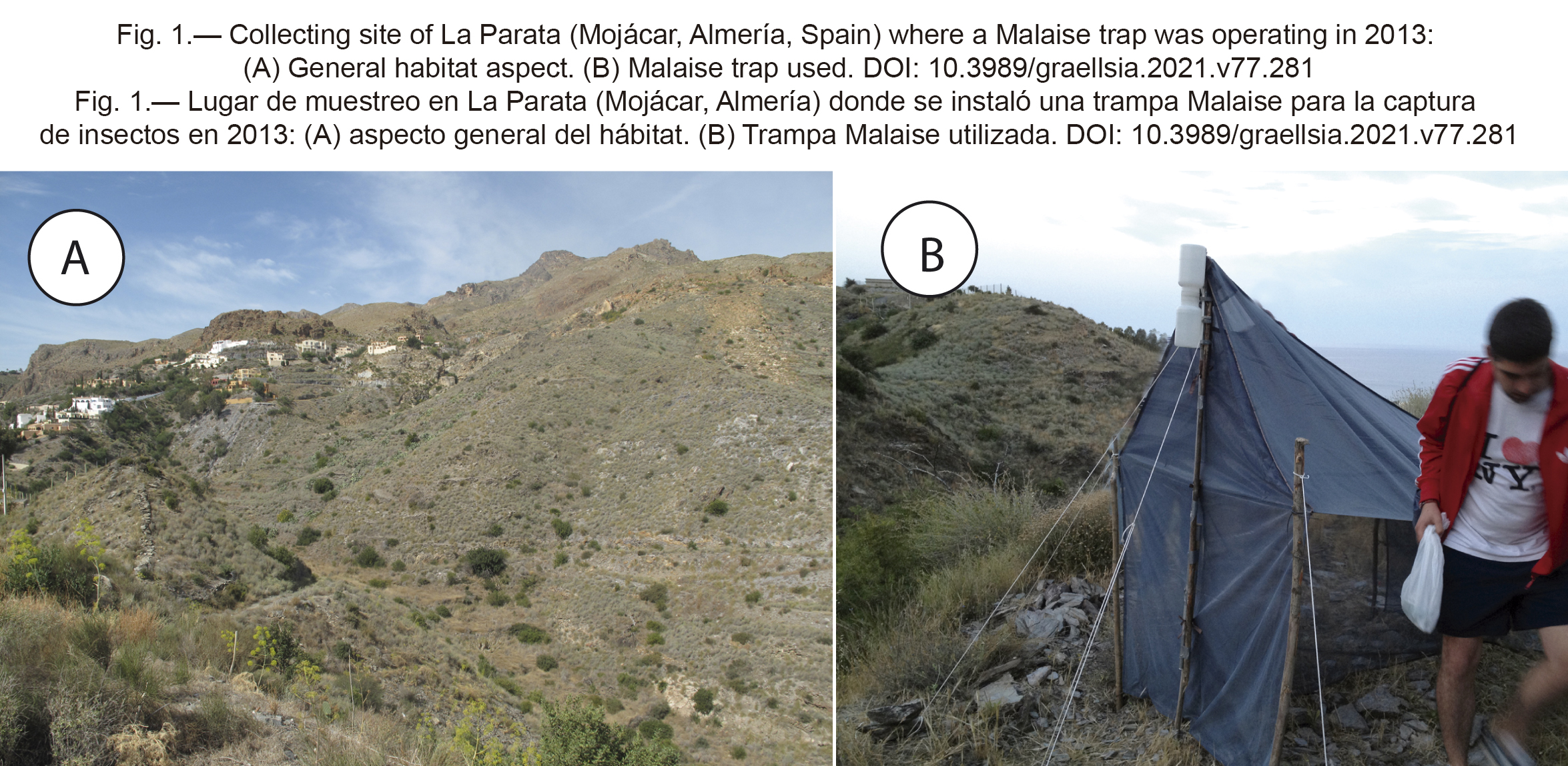

Eupelmus (M.) muellneri has been found in the field in Madrid, Barcelona, Girona (Tossa de Mar) Zaragoza (Pina de Ebro), Lleida (Torres de Segre), Alicante (Torrevieja), Granada (Calahonda), Murcia (Fortuna), Málaga, Castellón, Valencia and Almería, and it was the most abundant species in samples collected in a Malaise trap operated in the last named province at Mojácar (La Parata) (Table 1).

Eupelmus (Macroneura) seculatus (Ferrière, 1954) (Fig. 2E)

A species with a western Mediterranean range that is quite widespread in Spain including the Balearic Islands (Ibiza, Cabrera), and it is present in the Canary Islands but has not yet been reported from Portugal (Table 2). The record from the Canary Islands is new: La Gomera, Antoncojo, 26.iii.1979, RRA. It is polyphagous, but has been cited mainly as a parasitoid in galls of Cecidomyiidae and Cynipidae. In Spain 5♀♀ and 2♂♂ have been reared, the male described for the first time, from an unidentified cecidomyiid gall in Ononis flowers (Pujade-Villar, 1989), and also from galls of species of Cecidomyiidae on Artemisia (Rhopalomyia baccarum (Wachtl), Askew & Nieves-Aldrey, 2000), Salsola (Stefaniola salsolae, Fusu, 2017 and Askew & Nieves-Aldrey, 2017) and Eryngium (Lasioptera eryngii, Fusu, 2017). Emergence from galls of an unidentified cecidomyiid in seed heads of Salvia lavandulifolia (Madrid, Arganda, galls collected xi.2002, 1♀ emerged 2003, RRA) constitutes a new host record. Cynipid host galls in Spain are those of two species of Plagiotrochus, P. quercusilicis and P. australis on evergreen Quercus (Askew & Nieves-Aldrey, 2004), Aulacidea laurae Nieves-Aldrey on Scorzonera (Podospermum) laciniata (Askew et al., 2006), Timaspis lampsanae Perris on Lapsana (Askew et al., 2006), and Xestophanes potentillae (Retzius) on Potentilla (Askew et al., 2006).

Eupelmus (M.) seculatus has been found in the region in Catalonia, Zaragoza (Pina de Ebro), Lleida (Tremp), Madrid (El Escorial), Jaén, Castellón (Benicassim), Valencia, Ciudad Real, and at Mojácar (La Parata) in Almería where a Malaise trap was operated (Table 1).

THE EUPELMUS VESICULARIS COMPLEX

Eupelmus (Macroneura) barai (Fusu, 2017)

This species is the ‘dark form’ (Fusu, 2010) in the E. vesicularis aggregate. It is distributed across central and southern Europe and its occurrence in Spain as a parasitoid in galls of Cynipidae galling Quercus (Andricus quercusradicis sex. gen., Callirhytis glandium asex. gen., Cynips divisa Hartig asex. gen., Neuroterus albipes (Schenck) sex. gen., Trigonaspis bruneicornis Kieffer asex. gen. and T. mendesi Tavares asex. gen.) is previously recorded (Askew & Nieves-Aldrey, 2017, Fusu, 2017). Some Spanish specimens reared by JLN-A from galls of A. quercusradicis (1♀), C. glandium (1♀) and C. divisa (11♀♀, 8♂♂) are made paratypes by Fusu. A single male which emerged from a gall of the cynipid Plagiotrochus quercusilicis on Quercus ilex, collected in Zaragoza (Pina de Ebro) in 1996 by J. Blasco-Zumeta, is reported as ‘Eupelmus vesicularis’ (Askew et al., 2001).

Eupelmus (M.) barai, in addition to being a parasitoid in cynipid oak galls, is well represented in the parasitoid fauna of galls of Cynipidae and Cecidomyiidae on herbaceous plants and shrubs. It has been reared by JLN-A from galls of the cynipids Timaspis phoenixopodos Mayr on Lactuca (Madrid, 1984) (Askew et al., 2006 - as ‘Eupelmus vesicularis’, Fusu, 2017), and Liposthenes kerneri (Wachtl) on Nepeta (Madrid, 2 localities, 1989, JLN-A), Fusu (2017) designating as paratypes 2♀♀ from the host galls of the latter. The records of ‘Eupelmus vesicularis’ reared in mainland Spain from galls of the cynipids Phanacis caulicola (Hedicke), P. centaureae Förster and Timaspis lampsanae (Askew et al., 2006), and probably that of Diastrophus rubi (Bouché) (Pujade-Villar, 1992), refer to E. (M.) barai. The specific identity of the Macroneura referred to as ‘Eupelmus vesicularis’ (Askew et al., 2006), reared from the galls of Aulacidea tragopogonis (Thomson), Xestophanes potentillae and Diplolepis mayri (Schlechtendal), is very probably E. (M.) barai, but this needs to be confirmed. Stems of Cichorium intybus from Lleida (Tremp, 2010, RRA) yielded 2♂♂, presumed parasitoids of the cynipid Timaspis cichorii (Kieffer) or its associates (further material of both sexes with the same data was reared by A. Ribes. Stems of Centaurea from Madrid (Gascones) collected v.2004 produced, a month later, 4♀♀ and 5♂♂ E. barai, and also females of E. (M.) messene (hosts not known but probably Phanacis centaureae or associates). Galls of Phanacis hypochoeridis (Kieffer) from Madrid (Colmenar Viejo, San Pedro), collected RRA xii.2005, yielded 2♂♂ E. (M.) barai in v.2006 together with Eupelmus atropurpureus Dalman. An unidentified cynipid gall on Hieracium from Formentera (San Fernando, 1988, M. Boness) produced a single male E. (M.) barai.

Cecidomyiid host gall records from the region concern Rhopalomyia baccarum on Artemisia campestris, 2♂♂ emerging from a sample of these galls collected Zaragoza, Los Monegros, 1996 (Askew et al., 2001), and Lasioptera eryngii (Lleida, 2 localities, 2007, A. Ribes), 2♂♂ being paratypes (Fusu, 2017).

Fusu (2017) also includes in his type material non-reared females collected by Z. Bouček in Barcelona (1971), Santander (1973) and Madrid (1974). The record of ‘Eupelmella vesicularis’ from Majorca (Askew, 1975) refers to E. (M.) barai, as probably does that of Graham (1979) for Madeira (Table 2).

An exceptional record is of 1♀emerging from a pupa of the nymphaline butterfly Euphydryas aurinia (Rottemburg); the host was laboratory reared and placed in the field as a prepupa, (2006, Barcelona (Sallent), C. Stefanescu & J. Planas). It is not known whether or not the eupelmid was behaving as a secondary parasitoid.

Specimens of E. barai have been caught in the field at the following localities additional to those mentioned above: Majorca (La Albufera), Girona (Tossa de Mar), Soria (Abejar) and Castellón, and numbers found in a Malaise trap at La Parata (Almería) are included in Table 1.

Eupelmus (Macroneura) messene (Walker, 1839) (Fig. 2F)

Eupelmus (M.) messene was described by Francis Walker from New Zealand and recognised as belonging to the E. (M.) vesicularis complex in Fusu’s (2017) excellent study. It is the ‘light form’ in the aggregate (Fusu, 2010) and is plentiful in south-western Europe, but only females are known. It is almost certainly thelytokous (Fusu, 2017). The hosts listed for E. (M.) messene by Fusu (2017) are in the four major endopterygote orders and it is undoubtedly a highly polyphagous parasitoid, although most hosts are endophytic in plant stems or galls.

In the region, E. (M.) messene is recorded by Fusu (2017: 74,75) from Portugal (including Madeira and the Azores) and Spain, although it is not yet reported from the Canary Islands (Table 2). However, Iberian host records are surprisingly scarce and to date we can present only the rearing of 1♀ from cecidomyiid galls in fruits of Halimione portulacoides in Portugal (Algarve, Ferraguda, 1999, M. Boness) and an emergence of 10♀♀ from the collection of Centaurea stems (Madrid, Gascones, v.2004, RRA) that also yielded E. (M.) barai (see above) (no host was detected although the stems probably contained galls of the cynipid Phanacis centaureae). One of these specimens of E. (M.) messene from Centaurea stems was identified by Fusu (2017: 77). Field captures cited by Fusu (2017) are from Lleida and Catalonia in Spain, Porto in Portugal, from Santa Maria in the Azores, and from Garajau and Faja da Nogueira in Madeira. The species seems to be quite plentiful in Madeira where additional sites are Curral das Freiras, Machico, Boca do Risco and Sao Jorge (1981, RRA). Material in samples from the Malaise trap at La Parata (Almería) is detailed in Table 1.

Eupelmus (Macroneura) vesicularis (Retzius, 1783) (Figs 2C, 2D)

This is the third species in the E. (M.) vesicularis complex which is known to occur in the region studied, and it is the least common. It has a rather northerly range and is, with the exception of one uncertain record, the only species in the complex that occurs in the British Isles (Fusu, 2017). Fusu suggests that it seems to have a preference for a more humid and cooler climate and is often montane. We have found E. (M.) vesicularis not uncommonly in the French Pyrénées, but only at a few places on the Spanish side of the mountains, and on the north coast of Spain. However, there are also somewhat discordant, more southerly elements, in the distribution pattern.

Fusu (2017: 83) gives a single record from Spain (1♀ Cantabria, Castro Urdiales, 1973, Z. Bouček).We have found specimens in Lleida (Bossost, 1♂ and Vall d’Arán, 1♀, both 1995, RRA), Huesca (Jaca, 1♀, 1973, RRA) and Gipuzkoa (Orio, 2♀♀, ix.1994, RRA). A new national record appears to be 1♀ from Portugal (Monte Gordo, Algarve, on Retama flowers, 14.iii.1999, M. Boness) (Table 2). This specimen was originally determined as E. (M.) barai, but it lacks any indication of violet colouration on the mesoscutum. Eupelmus (M.) vesicularis was not found in the La Parata Malaise trap samples.

The only known reared specimens from the region are 3♂♂ which emerged iii.2019 from galls of the cynipid Andricus crispator Tschek collected 8.ii.2019 from Quercus suber in Málaga province (Pujerra, JLN-A & D. Gil-Tapetado). The galls were collected in the oak forests of the Sierra Bermeja, south of Pujerra, at an altitude of about 700m. These specimens differ slightly in the form of their funicle segments from males of E. (M.) vesicularis collected in France and England, and their specific identity requires verification. Three other specimens of ‘Eupelmus vesicularis’ were recorded as parasitoids in galls of A. crispator Tschek collected in Hungary (Askew et al., 2013), but this material is not available for re-examination.

EUPELMUS (MACRONEURA) IN THE LA PARATA MALAISE TRAP SAMPLES

A total of 358 Macroneura was found in the trap samples.These were attributed to six species (Table 1), but E. (M.) maculatus was represented by just a single female. There were about 2.7× as many males as females, even though males are not known for three of the six species. This numerical male bias is because males are fully winged whilst females are brachypterous, and a Malaise trap captures mostly insects which are intercepted in flight.

The most abundant species in the samples was E. (M.) muellneri (43.5%) although the thelytokous E. (M.) messene and possibly thelytokous E. (M.) aseculatus were surprisingly well-represented, outnumbering the females of those species which are known to have both sexes.
