New location for Bulinus truncatus (Audouin, 1827) (Gastropoda: Planorbidae) intermediate host of Schistosoma haematobium and its distribution in the Iberian Peninsula

Elías D. Dana1*, Juan García-de-Lomas2, José L. Juan Bañón3, Encarnación Esteban3, María A. A. Grácio4, Emilio González-Miras5, Francisco Rodríguez-Luque6 & Guillermo Ceballos7

1Grupo de Investigación, Transferencia I+D en Recursos Naturales, Universidad de Almería (Almería, España)

2Grupo de Investigación Estructura y Dinámica de Ecosistemas Acuáticos, Universidad de Cádiz (Cádiz, España)

3Instituto Valenciano de Microbiología. Ctra. de Bétera a San Antonio Km. 0,3-46117 Bétera (Valencia, España)

4Unidade de Parasitologia Médica e Unidade de Microbiologia e Parasitologia Médicas (UPMM). Instituto de Higiene e Medicina Tropical-Universidade Nova de Lisboa, Rua da Junqueira N100-1349-008 (Lisboa, Portugal)

5Sociedad para el Estudio y Recuperación de la Biodiversidad Almeriense (SERBAL), C/Baqueira Beret nº 2, 04720 Aguadulce (Almería, España)

6Asociación Naturalista Almeriense. C/ Murcia 84, 04004 (Almería, España)

7Servicio de Geo y Biodiversidad. Consejería de Medio Ambiente y Ordenación del Territorio, Av. Manuel Siurot 50, 41071 (Sevilla, España)

*Autor para correspondencia/Corresponding author:



This paper reports a new population of Bulinus truncatus (Audouin, 1827) (Gastropoda, Planorbidae) found in the province of Almería (Southeast Spain). B. truncatus is an intermediate host of Schistosoma haematobium, the trematode which causes urinary schistosomiasis in humans. Individuals were identified to species level by double-nested PCR, resulting in 100% homology. This population is located under the driest climate conditions of the Iberian Peninsula. Data on the distribution of this species in the Iberian Peninsula was gathered and is provided in this paper. Improved knowledge of the distribution of Bulinus truncatus is key to assess the risk of new outbreaks of schistosomiasis in the Iberian Peninsula.

Keywords: Planorbidae; distribution; urinary schistosomiasis; bilharziosis; urogenital; Iberian Peninsula; Portugal; Spain; Almería.



Nueva localidad de Bulinus truncatus (Audouin, 1827) (Gastropoda: Planorbidae), hospedador intermediario de Schistosoma haematobium, y su distribución en la península Ibérica

En este trabajo se reporta una nueva población de Bulinus truncatus (Audouin, 1827) (Gastropoda, Planorbidae) en la provincia de Almería (Sureste de España). Se trata de una especie que presenta considerable interés tanto zoológico como epidemiológico por su papel como hospedador intermediario de Schistosoma haematobium, responsable de la esquistosomiasis urogenital humana. Los ejemplares fueron determinados a nivel específico mediante PCR doble anidada, con un 100% de homología. Se trata de la población localizada más al Sureste y en condiciones de mayor aridez en la península Ibérica. Se recopilaron los datos de presencia publicados para conocer su distribución en la península. El conocimiento de la distribución de Bulinus truncatus es una pieza clave para evaluar el riesgo de nuevos focos de esquistosomiasis en la península Ibérica.

Palabras clave: Planorbidae; distribución; esquistosomiasis; bilharziosis; urogenital; península Ibérica; Portugal; España; Almería.


Recibido/Received: 18/03/2015; Aceptado/Accepted: 13/07/2015; Publicado en línea/Published online: 19/08/2015

Cómo citar este artículo/Citation: Dana, E. D., García-de-Lomas, J., Juan Bañón, J. L., Esteban, E., Grácio, M. A. A., González-Miras, E., Rodríguez-Luque, F. & Ceballos, G. 2015. New location for Bulinus truncatus (Audouin, 1827) (Gastropoda: Planorbidae) intermediate host of Schistosoma haematobium and its distribution in the Iberian Peninsula. Graellsia, 71(2): e030.

Copyright: © 2015 SAM y CSIC. Salvo indicación contraria, todos los contenidos de la edición electrónica de Graellsia se distribuyen bajo licencia de uso y distribución Creative Commons Reconocimiento no Comercial 3.0. España (cc-by-nc).




The genus Bulinus O.F. Müller, 1781 (Mollusca, Gastropoda, Planorbidae) comprises a group of species mainly distributed throughout warm regions. At least 35 species of Bulinus have been described subdivided between Physopsis and Bulinus s.s. -the latter including the old Phyrgophysa genus (Mandahl-Barth, 1965). Within the genus Bulinus Brown (1994) recognizes four species groups; a group of taxa related to B. africanus, another group related to B. forskalii, a third group with taxa closely related to B. reticulatus and finally a complex of forms which includes B. truncatus and B. tropicus. As in other hololimnic species, this group shows wide genetic variation between populations in great contrast with the greatly reduced variation at the morphological level (Jones et al., 2001; Stothard et al., 1997). This fact causes phylogenetic relationship problems, and thus the apparition of lineages of reduced geographical distribution and frequent synonyms (Hubendick, 1954, 1962; Brown, 1994; Nalugwa et al., 2010).

Bulinus truncatus (Audouin, 1827) [Syn.: Physa truncata (Auduoin, 1827), Bulinus contortus (Michaud, 1829)] can be found dispersedly and irregularly throughout Africa, islands and coastal areas of the Mediterranean basin and the Irano-Turanian region (Grácio, 1981; Rolán et al., 1987; Brown, 1994). It is the principal host of Schistosoma haematobium, which causes urinary schistosomiasis or bilharzia, thus its worldwide distribution has aroused great interest generating most of the international scientific literature about the species ecology and distribution (Mandahl-Barth, 1965). Bilharzia is the most important human disease caused by parasitic worms, with around 200 million infected (accumulating all variations of the illness) and up to 250.000 deaths a year. It is the second cause of morbidity and mortality worldwide, after malaria, and according to the World Health Organization, around 12% of the human population is infected (Santos et al., 2004).

In this paper, the geographical distribution of the species in the Iberian Peninsula is shown and a new location is reported.

In march 2014 several hundred individuals of the genus Bulinus were found in an artificial pond –formed by excavation– in El Ejido, Almería (UTM ED50 30 S, X=518335 E, Y=4068085, 90×50 m2, Fig. 1). Original material was deposited at the Museo Nacional de Ciencias Naturales (MNCN 15.05/72320). Ten specimens (n=10) were frozen to be analysed by molecular techniques (PCR). The use of these techniques is of maximum interest in the genus Bulinus, as identification based on morphological characters can induce confusion with other species both native and introduced (in the study site, a few specimens of Physa sp. were visually detected). This is especially relevant in this group as different species are specifically related to the life cycle of human or cattle parasites (López-Soriano, 2004; Andree & López, 2013).

Fig. 1.Bulinus truncatus (Audouin, 1827) specimens found in Almería province (Spain). Autor: F. Rodríguez-Luque.
Fig. 1.— Ejemplares de Bulinus truncatus (Audouin, 1827) recolectados en Almería (España). Autor: F. Rodríguez-Luque.


Fifty 50 mg of tissue from each specimen were homogenized using a sterilized crystal homogenizer. DNA was extracted following the automatic method provided in the Maxwell 16 Viral Total Nucleic Acid Purification Kit (Promega Ibérica) and the solution was adjusted to 50 ng/μl. The amplification reaction was carried out over a total reaction volume of 50 μl containing 2 μg of DNA, 10 mM Tris HCL, 50 mM KCL, 0.1% Triton X-1’’, 2 mM MgCl2, 0.5 mM for each dNTPs (Promega, Madison), 4 U Taq Polymerase (GenScript Taq, Bionova, Pisgataway, USA) and 0.5 μM for each primer (in both directions). The primer sequence was used to amplify the Mitochondrial cytochrome oxydase subunit I (Nalugwa et al., 2010). The amplification was performed as follows; initial phase 4 min at 95 ºC, followed by 40 cycles of 30 s at 94 ºC, 30 s at 50 ºC, 30 s at 72 ºC and final extension step with 7 min at 72 ºC, using a Sensoquest Labcycler termocycler. Amplicons were detected running an agarose 3% gel electrophoresis. PCR products were purified using the Purelink column (Invitrogen, Life Technologies, Löhne), following the instructions provided by the manufacturer. Amplified DNA sequences were obtained using the direct Big Dye sequencing method (Applied Biosystems, Life Technologies, Austin) on a genetic analyzer ABI PRISM 310 DNA sequencer (Applied Biosystems, Life Technologies) following the manufacturer’s recommendations and normal procedures. All samples were sequenced in both directions. Sequence similarity was compared with other gastropod sequences registered in the GenBank of the National Centre for Biotechnology Information and was determined using BLAST (Basic Local Aligned Search Tool) nucleotide. Material used for analyses and DNA extracted are kept frozen at −80 ºC and preserved at the Instituto Valenciano de Microbiología.

The analyses confirm the identification of the specimens as B. truncatus, with a 100% homology (sequence cover=100%, E. value=0.0, accession numbers of 100% ident: KJ135307.1, AM921807.1, AM286314.2). Hence, this is the southeastern most population detected in Spain, under the most arid climate conditions recorded in Europe: 260 mm mean annual precipitations and 17.8 ºC as mean temperature (Bayo, 2005, Fig. 2). These conditions are very similar to those populations studied by Yacoubi et al. (2007). Known distribution (Fig. 2) suggest a broader range of the species in the Iberian Peninsula. Nevertheless, it seems to be considered a rare species in the Iberian Peninsula as compared to the occurrence of other freshwater Planorbidae. A study of six species undertaken by Grácio (1983) in 62 different localities of the Portuguese Algarve only collected one site with the presence of Bulinus truncatus. There is a possibility that the species is in regression in some areas due to the alteration and destruction of its habitats and to the competitive displacement by species such as Physa acuta (Nobre, 1941; Grácio, 1983).

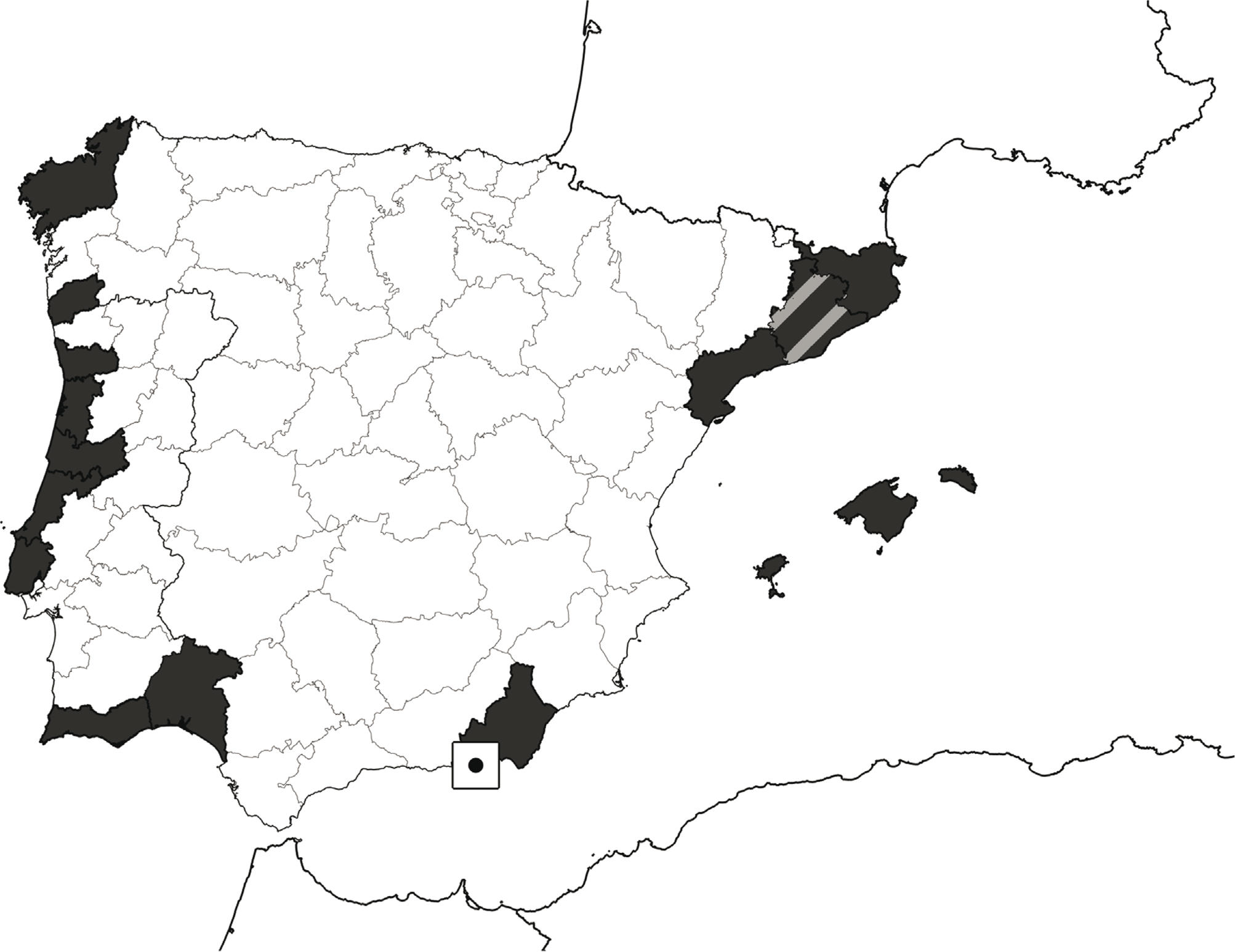

Fig. 2.— Provinces (in black) in which the presence of Bulinus truncatus (Audouin, 1827) has been referenced, with indication of the new record. For simplicity, provinces of occurrence are shown, since most published information does not include detailed geo-referenced locations and specific points cannot be shown. Sources: Morelet (1845)*, de Chía (1863; 1887), Martorell & Bofill (1888), Fagot (1892), Locard (1899)*, Maluquer (1917), Bofill & Haas (1920), Haas (1929), Aguilar-Amat (1933), Nobre (1941), Carvalho (1945)*, Margalef (1951), Sacchi (1957a,b), Jaeckel (1952), de Azevedo & Xavier (1965; 1966; 1969)*, Gasull (1965), Marazanof (1966), Vilella (1967), Compte (1968), Altimira (1969), Marqués-Roca (1974) –Barcelona province, in Quaternary sediments–, Colom (1978), Paul (1982), Grácio (1983)*, Rolán et al. (1987), Pons & Sureda (1995), Bayo (2005), Pérez-Quintero et al. (2004). Sources marked with (*) belong to Portugal. Strips in Barcelona province correspond to findings in Quaternary sediments.
Fig. 2.— Provincias (en negro) donde se ha documentado la presencia de Bulinus truncatus (Audouin, 1827) y localización de la nueva cita aportada en este trabajo. Por simplicidad se muestran las provincias, ya que la mayoría de la información publicada no contiene localizaciones georreferenciadas con detalle y los puntos específicos no pueden mostrarse. Fuentes: Morelet (1845)*, de Chía (1863; 1887), Martorell & Bofill (1888), Fagot (1892), Locard (1899)*, Maluquer (1917), Bofill & Haas (1920), Haas (1929), Aguilar-Amat (1933), Nobre (1941), Carvalho (1945)*, Margalef (1951), Sacchi (1957a,b), Jaeckel (1952), de Azevedo & Xavier (1965; 1966; 1969)*, Gasull (1965), Marazanof (1966), Vilella (1967), Compte (1968), Altimira (1969), Marqués-Roca (1974) –en sedimentos cuaternarios–, Colom (1978), Paul (1982), Grácio (1983)*, Rolán et al. (1987), Pons & Sureda (1995), Bayo (2005), Pérez-Quintero et al. (2004). Las referencias con (*) corresponden a Portugal. La trama en Barcelona indica hallazgos en estratos cuaternarios.


There is no information available about the current presence and life cycle of the associated parasite (Schistosoma haematobium) in the Iberian Peninsula, de Azevedo & Xavier (1966) considered likely that the life cycle of the parasite was being completed naturally in different sites of Portugal, where the authoctonous cases of schistosomiasis have occurred in the Iberian Peninsula. The latest case described (Grácio, 1981) occurred in the Algarve region and had Planorbarius metidjensis as intermediate host (possibility the Portuguese strain of S. haematobium had its origin in North Africa). These works conducted in Portugal have highlighted the role of Bulinus truncatus as potential intermediate host of S. haematobium. Recently, the possibility of a resurgence of the parasitic disease has emerged after the confirmation of several cases of transmission in Corsica (Berry et al., 2014; Holtfreter et al., 2014). This suggests the completion of the life cycle in the wild and the role of Bulinus truncatus in the transmission also for European countries. In Spain it has been considered an imported infection (mainly by immigrants, army personnel and travellers who have been in the endemic areas, Sánchez-Molina et al., 2010).

Due to the lack of specific studies, the presence of the parasitic worm in the natural environment cannot be ruled out, which confers a greater interest in knowing the distribution of this group of snails in areas not considered as schistosomiasis endemic regions. So far, available studies were focused on the description of patients -immigrants from African countries or travellers who had been in the areas where the parasite is endemic-, who showed the symptoms of infection (Sánchez-Molina et al., 2010). Some authors (Díaz & Florencio, 2001; Casimiro et al., 2006) suggest that in the actual scenario of global change, the rise in infected vectors increases the risk of transmission of the disease in areas where the adequate hosts exists is of greater importance than any rise in temperatures (Casimiro et al., 2006). This trend has been observed in the study area, where the prevalence of the disease is growing (more than 200 cases of vesicle schistosomiasis, Parrilla-Ruiz et al., 2004; Salas-Coronas et al., 2013). According to estimations of these authors only a small fraction of affected patients is being detected, thus the presence of the parasitic diseases and the risk of completion of the life cycle seem to be considerable. This fact recommends a better knowledge of the distribution of Bulinus truncatus in the Iberian peninsula.

This study is an example of the utility and social impact of increasing our knowledge on water bodies and their associated biota.


This study was partially financed by the Consejería de Medio Ambiente y Ordenación del Territorio (Junta de Andalucía). We thank Dr. Rafael Araujo, curator of the malacological collection at the MNCN-CSIC for his help. We also thank the valuable comments made by anonymous referees, which allowed us to improve the original manuscript.



Aguilar-Amat, J. B., 1933. Observacions malacológiques. XIX. Contribució al coneixement de la malacofauna menorquina. Butlletí de la Institució Catalana d’Història Natural, 33(6-7): 324-338.
Altimira, C., 1969. Notas malacológicas. 8. Moluscos del delta del Llobregat. Publicaciones del Instituto de Biología Aplicada, 46: 91-105.
Andree, K. B. & López, M. A., 2013. Species identification from archived snail shells via genetic analysis: a method for DNA extraction from empty shells. Molluscan Research, 33(1): 1-5.
de Azevedo, J. F. & Xavier, M. L. S., 1965. Um novo vector potencial do Schistosoma haematobium em Portugal. Anais do Instituto de Medicina Tropical, 22(1/4): 35-37.
de Azevedo, J. F. & Xavier, M. L., 1966. A new potential vector of Schistosoma haematobium in Portugal. Revista Ibérica de Parasitología, 26 (1): 3-11.
de Azevedo, J. F. & Xavier, M. L., 1969. O complexo molusco-schistosoma. Jornal da Sociedade das Ciencias Medicas de Lisboa, 133(5): 377-405.
Bayo, M., 2005. Estructura, dinámica y producción de la fauna bentónica de las Albuferas de Adra (Almería). Servicio de Publicaciones de la Universidad de Almería. Almería. 215 pp.
Berry, A., Moné, H., Iriart, X., Mouahid, G., Abbo, O., Boissier, J., Fillaux, J., Cassaing, S., Debuisson, C., Valentin, A., Mitta, G., Théron, A. & Magnaval, J. F., 2014. Schistosomiasis haematobium, Corsica, France. Emerging Infectious Diseases, 20(9): 1595-1597.
Bofill, A. & Haas, F., 1920. Estudi sobre la malacologia de les Valls Pirenaiques: Conca del Llobregat. Treballs del Museu de Ciències Naturals de Barcelona, 3(13): 380-830.
Brown, D. S., 1994. Freshwater Snails of Africa and their Medical Importance, 2nd ed., Taylor & Francis. London & Bristol. 609 pp.
Carvalho, R. N., 1945. Catálogo da colecçao de Invertebrados de Portugal existentes no Museu Zoológico da Universidade de Coimbra. Mollusca 2a parte B. Clase Gastropoda. Cuvier. Memorias e Estudos do Museu Zoológico da Universidade de Coimbra, 167: 1-50.
Casimiro, E., Calheiros, J., Santos, F. D. & Kovats, S., 2006. National Assessment of Human Health Effects of Climate Change in Portugal: Approach and Key Findings. Environmental Health Perspectives, 114(12): 1950-1956.
de Chía, M., 1863. Catálogo de los moluscos testáceos terrestres y fluviátiles de la comarca de Gerona. Paciano Torres. Gerona. 41 p.
de Chía, M., 1887. Nota de los moluscos terrestres y de agua dulce de los alrededores de Barcelona. Gerona. 14 pp.
Colom, G., 1978. Biogeografía de las Baleares, 2a edición. Diputación Provincial de Baleares. Instituto de Estudios Baleáricos, CSIC. Palma de Mallorca. 2 vols. 515 pp.
Compte, A., 1968. La fauna de Menorca y su origen (Síntesis de la fauna de Menorca, su naturaleza y un ensayo acerca de su origen). Revista de Menorca, 59 (número extraordinario): 1-212.
Díaz, J. & Florencio, M. R., 2001. Cistitis por Schistosoma haematobium en un inmigrante subsahariano. Revista de Diagnóstico Biológico, 50(1): 45-48.
Fagot, P., 1892. Historie malacologique des Pyrénnées française et espagnoles. Bulletin de la Societe Ramond, 27: 1-156.
Gasull, L., 1965. Algunos moluscos terrestres y de agua dulce de Baleares. Bolletí de la Societat d’Historia Natural de les Balears, 11:7-154.
Grácio, M. A. A., 1981. A importância da malacologia em parasitologia médica. Jornal da Sociedade das Ciencias Medicas de Lisboa, 2: 119-140.
Grácio, M. A. A., 1983. Distribution and hábitats of six species of freshwater pulmonate snails in Algarve, Southern Portugal. Malacological Review, 16: 17-23.
Haas, F., 1929. Fauna malacológica terrestre y de agua dulce de Cataluña. Treballs del Museu de Zoologia, 5: 1-491.
Holtfreter, M. C., Moné, H., Müller-Stöver, I., Mouahid G., & Richter, J., 2014. Schistosoma haematobium infections acquired in Corsica, France, August 2013. Eurosurveillance, 19(22): 1-3.
Hubendick, B., 1954. Viewpoints on species discrimination with special attention to medically important snails. Proceedings of the Malacological Society of London, 31: 6-11.
Hubendick, B., 1962. Aspects on the diversity of the fresh-water fauna. Oikos, 13: 249-261.
Jaeckel, S., 1952. Die Mollusken der spanischen Mittelmeer-Inseln. Mitteilungen aus dem Zoologischen Museum in Berlin, 28: 53-143.
Jones, C. S., Rollinson, D., Mimpfoundi, R., Ouma, J. & Kariuki, H. C., 2001. Molecular evolution of freshwater intermediate snail hosts within the Bulinus forskalii group. Parasitology, 123: S277-S292.
Locard, A., 1899. Conchyliologie Portugaise: Les Coquilles Terrestres des eaux douces et saumâtres. Imprimerie A. Rey. Lyon. 303 pp.
López-Soriano, J., 2004. Técnicas de Biología Molecular Aplicadas a la Taxonomía y Filogenia de Moluscos. Spira, 1(4): 23-33.
Maluquer, J., 1917. Excursió a les illes de Mallorca i Cabrera. Annuari. Junta de Ciències Naturals de Barcelona, 2: 613-618.
Mandahl-Barth, G., 1965. The Species of the Genus Bulinus, Intermediate Hosts of Schistosoma. Bulletin of the World Health Organization, 33: 33-44.
Marazanof, F., 1966. Mollusques aquatiques des marismas du Guadalquivir: dones écologiques et biogéographiques. Annales de Limnologie, 2(3): 477-489.
Margalef, R., 1951. Materiales para la hidrobiología de la Isla de Menorca. Publicaciones del Instituto de Biología Aplicada, 11: 5-112.
Marqués-Roca, M. A., 1974. Las formaciones cuaternarias del delta del Llobregat. Tesis Doctoral. Universidad de Barcelona. 615 pp. (available in
Martorell, F. & Bofill, J., 1888. Catálogo de la colección conchiológica que fue de D. Francisco Martorell y Pena legada por dicho señor a la ciudad de Barcelona y existente en el Museo Martorell de la propia ciudad. Ayuntamiento de Barcelona. Barcelona. 94 pp.
Morelet, A., 1845. Description des Mollusques terrestres et fluviatiles du Portugal. J.-B. Baillière et Libraire de l’Academie Royale de Médicine. Paris. 115 pp.
Nalugwa, A., Kristensen, T. K., Nyakaana, S. & Jørgensen, A., 2010. Mitochondrial DNA Variations in Sibling Species of the Bulinus truncatus/tropicus Complex in Lake Albert, Western Uganda. Zoological Studies, 49(4): 515-522.
Nobre, A., 1941. Fauna Malacologica de Portugal. II. Moluscos terrestres e fluviais. Memórias e Estudos do Museu Zoológico da Universidade de Coimbra, 124: 1-277.
Parrilla-Ruíz, F. M., Vargas-Ortega, D., Cárdenas, D. P. & Villarejo, A., 2004. Hematuria por esquistosomiasis. Emergencias, 16: 162-164.
Paul, C. R. C., 1982. An annotated check-list of the non marine mollusca of the Pityuse Island, Spain. Journal of Conchology, 31: 79-86.
Pérez-Quintero, J. C., Bech, M. & Huertas-Dionisio, J. L., 2004. Los moluscos de las aguas continentales de la provincia de Huelva (SO España). Iberus, 22(2): 19-31.
Pons, G. X. & Sureda, P., 1995. Cataleg de la collecció de molluscs (Mollusca) del Museu Regional d’Arta (Mallorca). Bolletí de la Societat d’Historia Natural de les Balears, 38:15-34.
Rolán, E., Vilas, F. & Nombela, M. A., 1987. Fauna malacológica de los estuarios-lagoones y sus variaciones por cambios de salinidad. Iberus, 7(1): 59-65.
Sacchi, C. F., 1957a. Notes hydrobiologiques sur la faune de Minorque. Vie et Milieu, 8(3): 327-328.
Sacchi, C. F., 1957b. Lineamenti biogeografici della Spagna mediterranea su basi malacofaunistiche. Publicaciones del Instituto de Biología Aplicada, 25: 5-48.
Salas-Coronas, J., Vázquez-Villegas, J., Villarejo-Ordóñez, A., Sánchez-Sánchez, J. C., Espada-Chavarría, J., Soriano-Pérez, M. J., Cabeza-Barrera, M. I. & Cabezas-Fernández, M. T., 2013. Hallazgos radiológicos en pacientes con esquistosomiasis importada. Enfermedades Infecciosas y Microbiología Clínica, 31: 205-209.
Sánchez-Molina, M. I., Sanz, M. P., Vicente, B., Undabeitia, E. & Jareño, M. S., 2010. Infección vesical por Schistosoma haematobium. Semergen, 36(9): 529–532.
Santos, Y., Balliu, E. & Villán, D., 2004. Hematuria en un varón de 34 años. Medicina Clínica, 123(8): 312-316.
Stothard, J. R., Mgeni, A. F., Alawi, K. S., Savioli, L. & Rollinson, D., 1997. Observations on shell morphology, enzymes and random amplified polymorphic DNA (RAPD) in Bulinus africanus group snails (Gastropoda: Planorbidae) in Zanzibar. Journal of Molluscan Studies, 63: 489-503.
Vilella, M., 1967. Notas malacológicas. IV. Nuevas citas de dispersión. Miscelanea Zoologica, 2(2): 17-21.
Yacoubi, B., Zekhnini., A., Rondelaud., D., Vignoles., P., Dreyfuss, G., Cabaret, J., & Moukrim, A., 2007. Habitats of Bulinus truncatus and Planorbarius metidjensis, the intermediate hosts of urinary schistosomosis, under a semiarid or an arid climate. Parasitology Research, 101: 311–316.
